Protection Technical Textiles
go to previous Aramid D3 200 go to next
200 gr/m2, 75% m-Aramid 23% p-Aramid 2% Carbon, Inherent Flame Retardant, Antistatic, 2/1S Twill Fabric
Aramid D3 200


Aramid twill fabric

consisting of 200 gr/m'2, 75% m-Aramid, 23% p-Aramid, 2% Carbon.

Inherent flame retardant fabric

for firefighters.

Flame resistant (Flame retardant) fabric with EN ISO 11612 certification.

Antistatic (EN 1149-5)



Applications




Certificates


Care Instructions


60'C Machine Wash 60'C Machine Wash

No Chlorine Based Bleaching No Chlorine Based Bleaching

Can Be Tumble Dried Can Be Tumble Dried

Maximum 150'C Warm Iron Maximum 150'C Warm Iron

Suitable for Dry Cleaning Suitable for Dry Cleaning


Technical Parameters

Fiber 75% m-Aramid (m-AR) 23% p-Aramid (p-AR) 2% Carbon(CF) EN ISO 2076
Yarn Warp:30/2Ne; Weft:30/2Ne EN ISO 2060
Weight 200 ±5 gr/m2 EN ISO 3081
Width 1600 ±20 mm EN ISO 3932

Tensile Strength Warp>1500N; Weft>1000N EN ISO 13934-2
Tear Strength Warp>70N ; Weft>60N EN ISO 13937-1
Dimensional Change -3% < Length < +3% ; -3% < Width < +3% EN ISO 5077

Rubbing Fastness 4-5 EN ISO 105 X12
Perspiration Fastness 4-5 EN ISO 105 E04
Washing Fastness 4-5 EN ISO 105 C06
Dry Cleaning Fastness 4-5 EN ISO 105 D01
Hypochlorite Fastness 4-5 EN ISO 105 N01
Peroxide Fastness 4-5 EN ISO 105 N02
Hot Press Fastness 4-5 EN ISO 105 X11

Light Fastness 4-5 EN ISO 105 B02
Perspiration Light Fast. 4-5 EN ISO 105 B07

pH 6.0 EN ISO 3071
Azo Test No Azo Colorants. EN ISO 14362-1

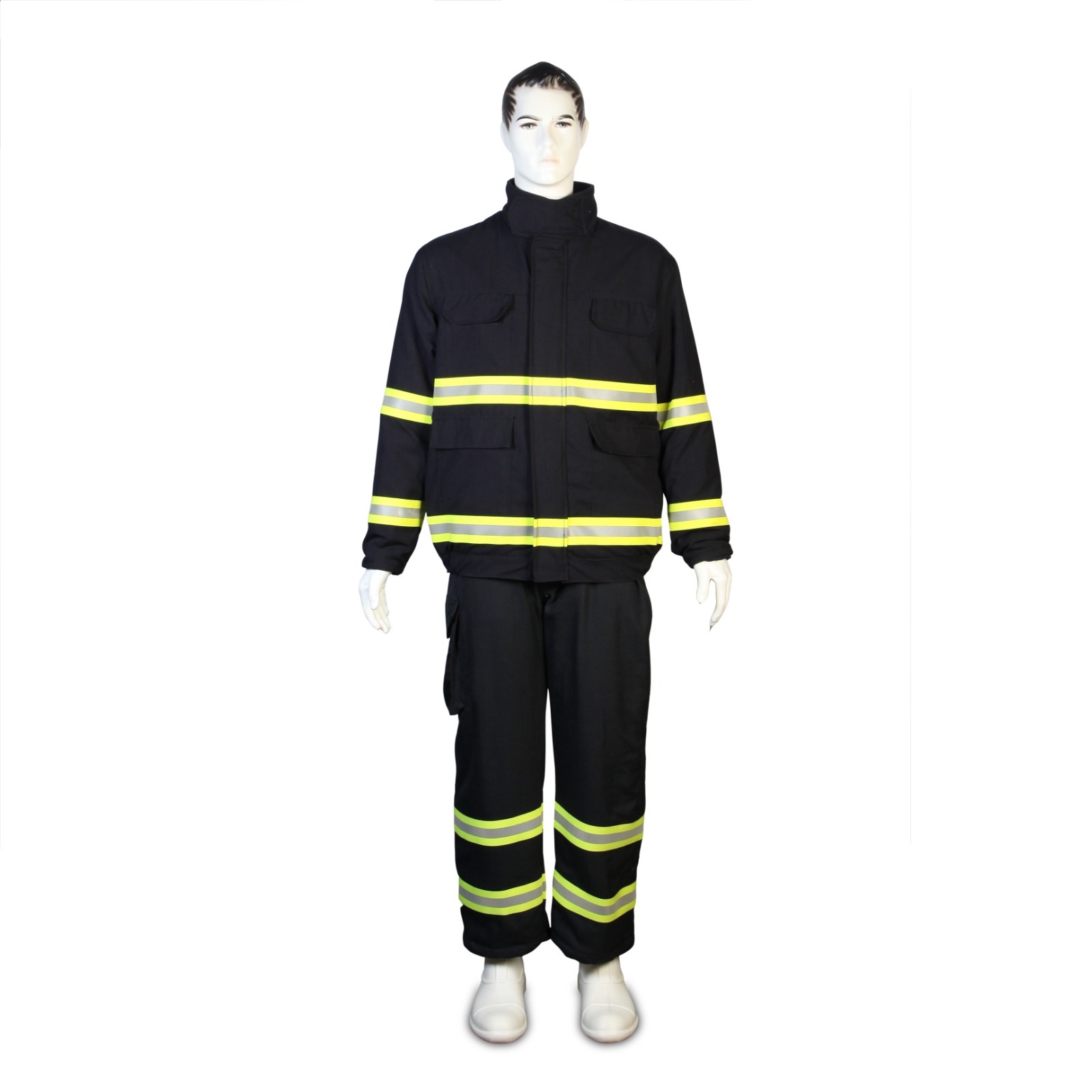

Application Firefighters Costumes
Quality Management Done ISO 9001
Flame and Heat Protection Yes EN ISO 11612
Antistatic Yes EN ISO 1149-5


Functions

Oeko Tex Standard 100 Safe Textile

EN 11612 Heat and Flame Protection

EN  1149 Antistatic



Technical Documents


>> Aramid D3 200 Data Sheet



Colors and Article Numbers
Orange PP-24644 - STANDARD - Aramid D3 200-4848
Dark Green PP-65457 - STANDARD - Aramid D3 200-4849
Red PP-33921 - STANDARD - Aramid D3 200-4850
Dark Blue PP-58627 - STANDARD - Aramid D3 200-4851
Black PP-96036 - STANDARD - Aramid D3 200-4852
Navy PP-58628 - STANDARD - Aramid D3 200-4853
Grey PP-96034 - STANDARD - Aramid D3 200-4854
Dark Navy PP-58625 - STANDARD - Aramid D3 200-4855
